WECO-917E Elevator Light Curtain MITSUBISHI TYPE

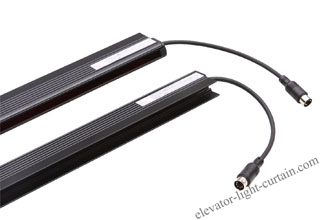

WECO-917E MITSUBISHI Elevator Door Detector

1.Performance Parameter

Number of beams(Max.) 154
Operating environment -20℃——+65℃
Light Immunity 100000Lux
Vertical tolerance +/- 15mm,7°
Horizontal tolerance +/- 3mm,5°
Dimensions

Centre Opening:H2000mm*W55mm*D20mm;

Side Opening(T):H2000mm*W18mm*D18.8mm

Detecting height 20mm-1841mm
Detecting range 0-4m
Response time 61ms
Power consumption ≤4W or 100Ma @ DC24V
Signal output Relay output (AC220V,AC110V,DC24V)
or Transistor output (NPN,PNP)
LED power Indicator in receiver Yellow LED when it is detecting
LED status Indicator in receiver Red LED when it is detecting
Number of diodes 32pairs(64pcs)
Infra red diodes range 58.8mm
Voice reminder Buzzer In RX,after continuous detection for 15s,buzzer on
EMC EN12015,EN12016
Vibration

20 to 500Hz 4 hours per X-Y-Z axis Sinuaoidal vibration 30Hz rms 30mins Per X-Y-Z axis

Protection Level IP54(TX,RX),IP31(Power box)
Redundancy One transmitter shielded after 120s detected absent

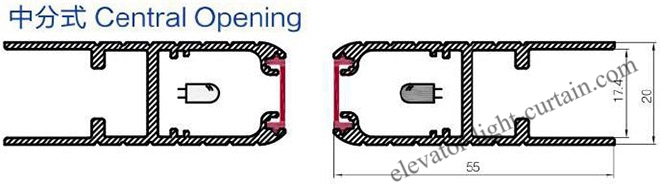

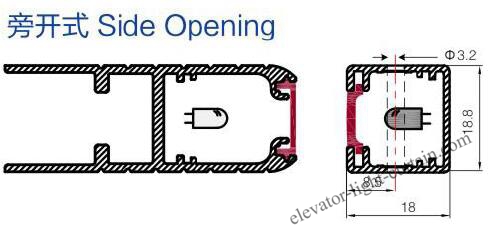

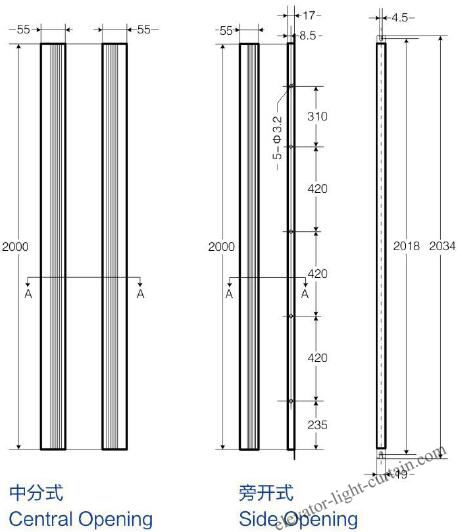

2.Installation Drawing And Profile Size

3.Do you purchase matched mechanical linkage for installation?

Related Information:

A new generation of elevator door detector(3/3)

4.Bottom detection
The new GB7588(En81) requires a gap of no more than 20mm between the first detecting point and the sill at the bottom, Eagle eye boasts a detection range of 0-1800mm with its no blind zone feature, and thus resolves the safety issues at the bottom part, so that no kin’s foot will be squeezed.
