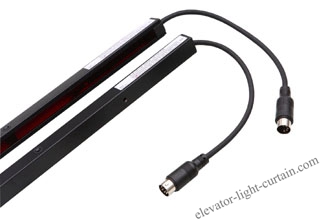

WECO-917T Elevator Light Curtain

WECO-917T light curtain

1.Performance Parameter

Number of beams(Max.) 154
Operating environment -20℃——+65℃
Light Immunity 100000Lux
Vertical tolerance +/- 15mm,7°
Horizontal tolerance +/- 3mm,5°
Dimensions H2000mm*W18mm*D18.8mm
Detecting height 20mm-1841mm
Detecting range 0-4m
Response time 61ms
Power consumption ≤4W or 100Ma @ DC24V
Signal output Relay output (AC220V,AC110V,DC24V)
or Transistor output (NPN,PNP)
LED power Indicator in receiver Yellow LED when it is detecting
LED status Indicator in receiver Red LED when it is detecting
Number of diodes 32pairs(64pcs)
Infra red diodes range 58.8mm
Voice reminder Buzzer In RX,after continuous detection for 15s,buzzer on
EMC EN12015,EN12016
Vibration

20 to 500Hz 4 hours per X-Y-Z axis Sinuaoidal vibration 30Hz rms 30mins Per X-Y-Z axis

Protection Level IP54(TX,RX),IP31(Power box)
Redundancy One transmitter shielded after 120s detected absent

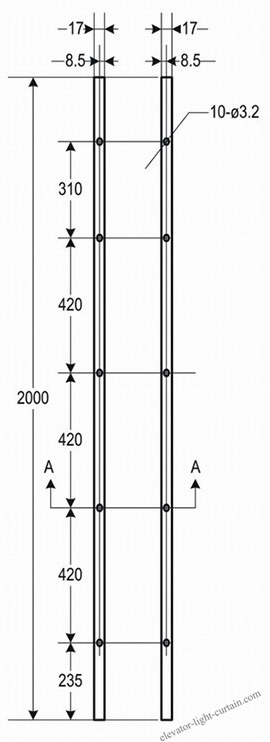

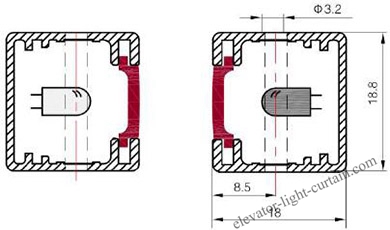

2.Installation Drawing And Profile Size

Related Information:

Elevator maintenance of security and technical points(6/10)

Fault Status:
In the whole department is closed, the door to the control panel to observe the state of the relay, the relay is released if the lock state, you should judge for lock loop is disconnected.
Repair method:
Since most elevator climbing Express are not run off when the door locks, door locks fault though so easy to judge, but it is difficult to figure out which door failure.

My maintenance recommendations:
1. First stop should be the focus of suspicion layer elevator door malfunctions.
2. asked whether layer triangular key opened the door, in the hall with a triangular key to re-look at the hall door switch.
3. Make sure that in the maintenance state, the control panel separate short hall door and hall door, the separation is part of the hall door or car door part of the fault.
4. If so Tingmen partial failure, ensuring the maintenance status, short hall lock loop to run the elevator inspection speed, layer by layer Tingmen check each channel interlock exposure (do not forget the passive door).
Note: After repair door lock circuit fault, we must first take down the door wiring short, can only express elevator to the state will be restored...
